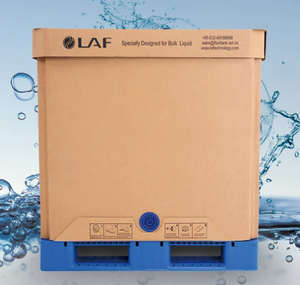

Collapsible paper IBCs, composed of a high-strength outer box, a PE inner bag, a top lid, and a pallet, constitute an efficient logistics packaging solution for storing and transporting bulk liquid goods. The outer box is made of durable multi-layer corrugated paperboard, without any seams, while the inner liner typically consists of two layers of food-grade PE film (customizable according to requirements), providing comprehensive protection to the goods.
Collapsible Paper IBC Technical Specification | |
Capacity | 1000L |
Loading / Unloading Type | Top Load Bottom Discharge |
Components | Box, Top Lid, Cassette (Including Liner Bag) |
Dimension | 1100x1100x1000 mm |
Weight | 48kg (±1kg) |
Box Thickness | 40 mm |
Static Stacking | 3 tiers |
Dynamic Stacking | 2 tiers |
Pallet Dimension | 1120x1120 cm |
Food Products: Wine, edible oil, palm oil, soy sauce, rice wine, various concentrated fruit juices, dairy products, food additives, sorbitol, mineral water, various syrups, etc.
Industrial Oils and Greases: Lubricating oil, lubricating oil additives, coconut oil, hydraulic oil, industrial gear oil, castor oil, transformer oil, mineral oil, glycerin, high-fat fatty acids, oleic acid, etc.
Non-hazardous Liquid Chemicals: Plasticizers, synthetic resins, detergents, disinfectants, propylene glycol, ethylene glycol, polyether, herbicides, fertilizers, surfactants, feed additives, silicates, saline solutions, natural rubber, synthetic latex, etc.
Cost-Efficient: A single 20'FCL can transport 20,000L using 20 paper IBCs, compared to only 17,600L with 80 220L drums.
User-Friendly: No specialized equipment or experts needed for assembly. A single person can set it up within minutes.
Robust Design: The paper IBC can support up to 8000kg and allows stacking up to 3 layers.
Sustainable Choice: Crafted from recyclable materials, the collapsible design of the paper IBC saves space during both transit and storage.
Q1: Are you manufacture?
A: Yes, we are.
Q2: What certificates you have?
A: FDA, EC, Kosher, Halal, FSSC22000, ISO9001
Q3: What kind of products you could offer?
A: Flexitank, Dry bulk liner, Paper IBC, IBC liner.
